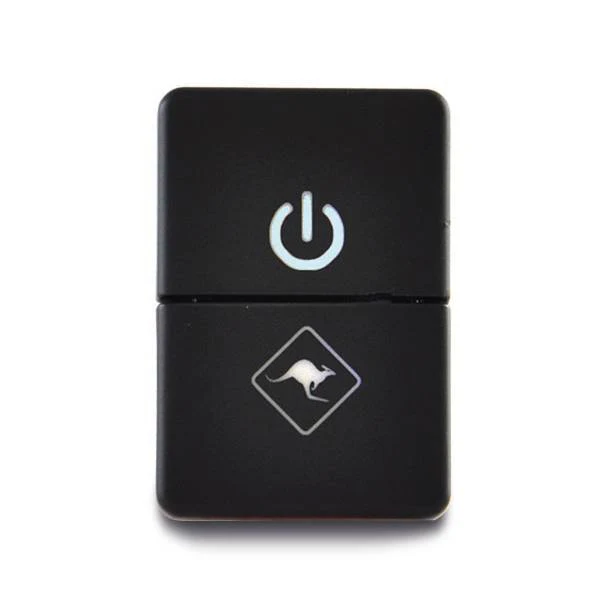

Dual Lightforce Switch to suit Toyota/Holden/Ford

When the new TY2 Dual Input Switch is connected to the Lightforce Dual Input Switch Adaptor #SWADP6, you will have a complete plug and play connection, should you wish to install the Lightforce Harness for Genesis and Venom LED #LFDLHTS2.

This factory style switch features the Lightforce Roo Logo and icon for universal applications. Available for the following vehicles without any modification to the original dashboard.

Toyota 200 Series 2008+, Toyota Hilux MY15+, Toyota Prado 150 Series 2008+, Lightforce Switch Fascia’s (CBFASCIA, CBFASCIA2 (top row) & CBFASCIA3.

Features include:

• Dual inputs providing two independently switched outputs
• Dual coloured illumination – blue (switch illumination) & green (once switch is on)
• Suitable for positive switched vehicles
• Harness included (300mm in length)
• Switch cut out size: 18mm x 28mm
• Australian design patent

The switch must be used in conjunction with a relay as it has a maximum current rating of 3 amps @12v.
